First, an overview

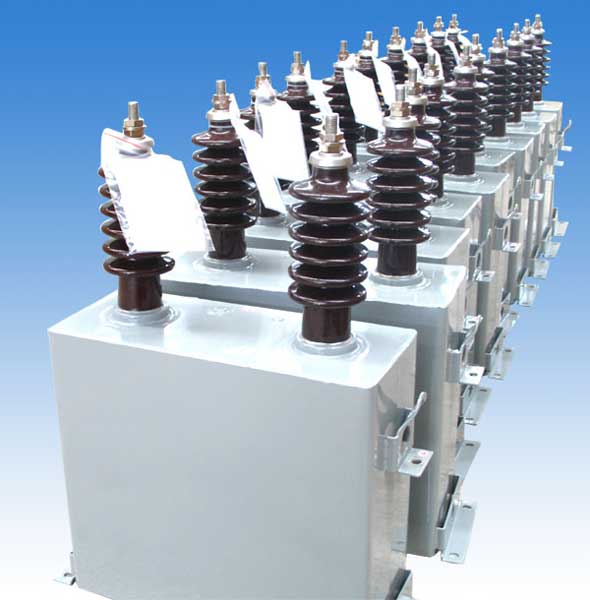

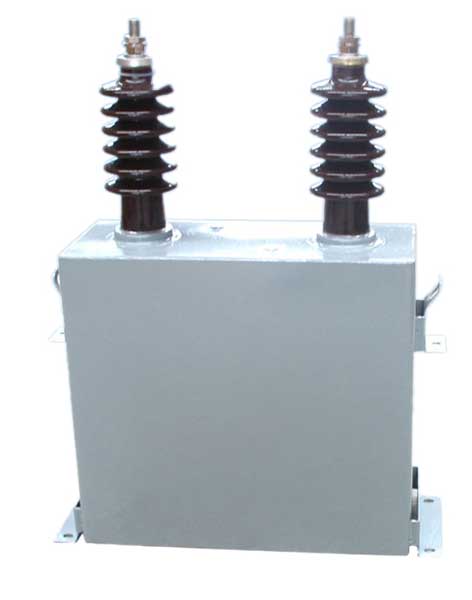

This product is mainly used as the filter components, and other devices (such as reactor) connected together to form AC filter capacitor is used for electrical equipment with harmonic, prevent the harmonic pollution of the power grid, or connected to the power system, to provide a low impedance channel of a harmonic current, to reduce the harmonic level of the power grid, improve the power factor of the target system.
Two, the main features
1, small size, light weight, good bit;
2, the loss of small, low temperature rise, long life;
3, the use of excellent performance of insulating oil - (benzyl toluene) to enable the product to meet the low temperature at minus 40.
Three, the use of conditions
1, ambient air temperature: -40 ~ +45.
2, altitude: 2000m the following;
3, environmental conditions: no harmful gases and steam, no conductive dust in Egypt violent vibration;
Four, the main technical indicators
1, rated voltage: 1.2 ~ 12kv;
2, rated frequency: 50Hz or 150Hz;
3, Capacitance Deviation: -5% ~ +5%;
4, dielectric loss tangent Tan 8: for the built-in fuse products for less than 0.0008, no built-in fuse are less than or equal to 0.0005;
5, steady-state over voltage: 1.10Un;
6, steady-state over current: maximum allowable current can be agreed by the user and the manufacturer. |
